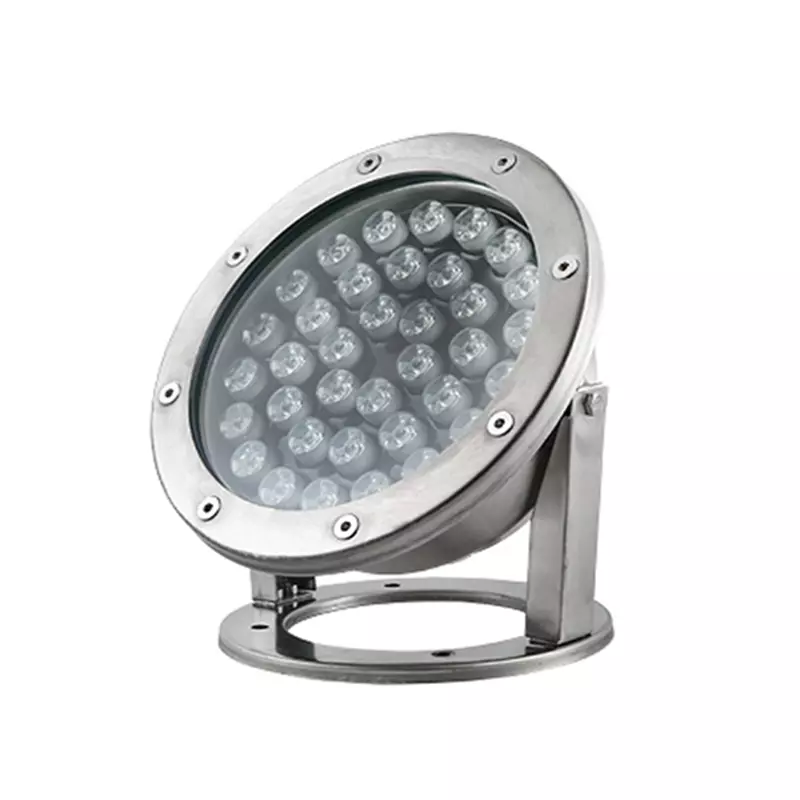

36W Led Underwater Light
Product Details
1. Housing: 304# stainless steel;
2. Cover:304# stainless steel;
3. Glass: Tempered Glass T=8mm
4. Lens:Optional lens, Efficiency ≥ 85%
5. Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
6. MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
7. Waterproof seal:glass and housing are silicone sealed
8. Operating temperature:-40~45 centigrade
* Unique optical design, no light pollution, glare-free, uniform light field, no strobe
* RGB and 2700K-7000K wide range color temperature optional
Over-Current Protection
Short-Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
| Product name | LED Pool Light |
| Model No. | LSL-PL01036 |
| LED Chips Quantity | 36PCS |
| Power | 36W |
| Input Voltage | DC24V |
| Chips Brand | Bridgelux/Epistar |
| Emitting Color | RGB |
| LED Luminous Efficiency | 100LM/W |
| Lamp’s Luminous Efficiency | >60LM/W |
| Beam Angle | 30°/45°/ 60° |
| CRI | 80Ra |
| Lifespan | 50,000hrs |
| Protection Rating | IP68 |
| Operating Temperature | -40°C~45°C |
| Material | 304 Stainless Steel |

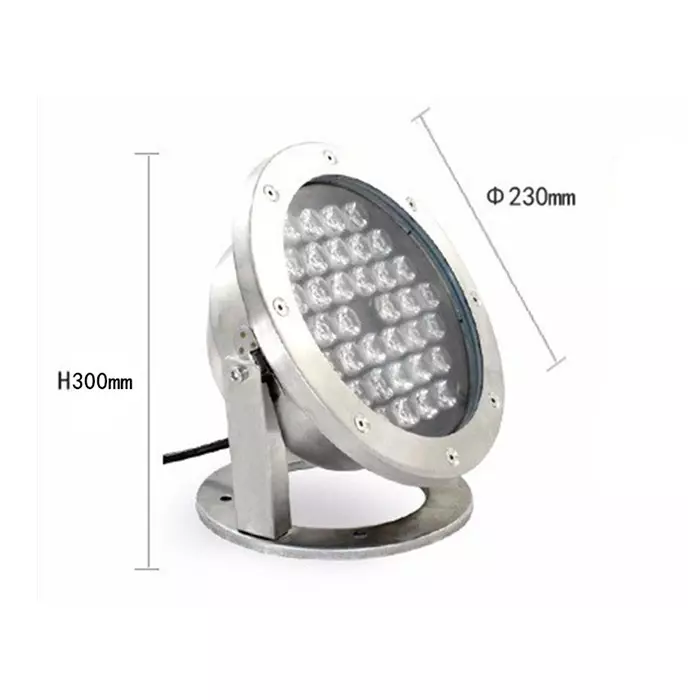

| Product Size | D230*H300MM |
DIRECT MANUFACTURER CAN PROVIDE YOU MORE COMPETITIVE ADVANTAGES
SMALL ORDER
NO MOQ
FAST DELIVERY
COMPETITIVE PRICE
24*7 AFTER SALES SERVICES
YOU MAY LIKE

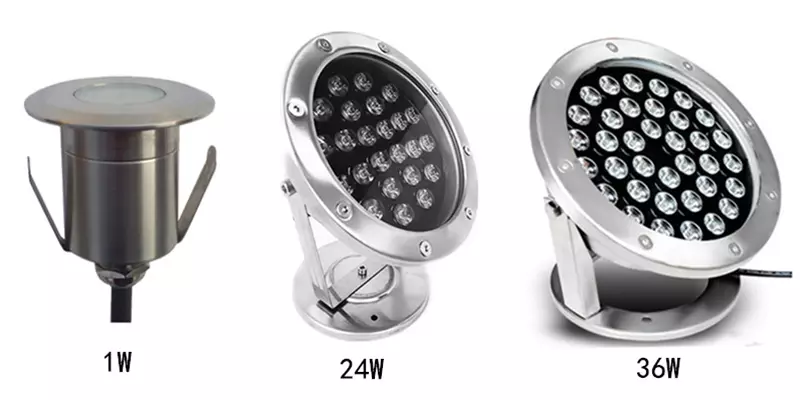

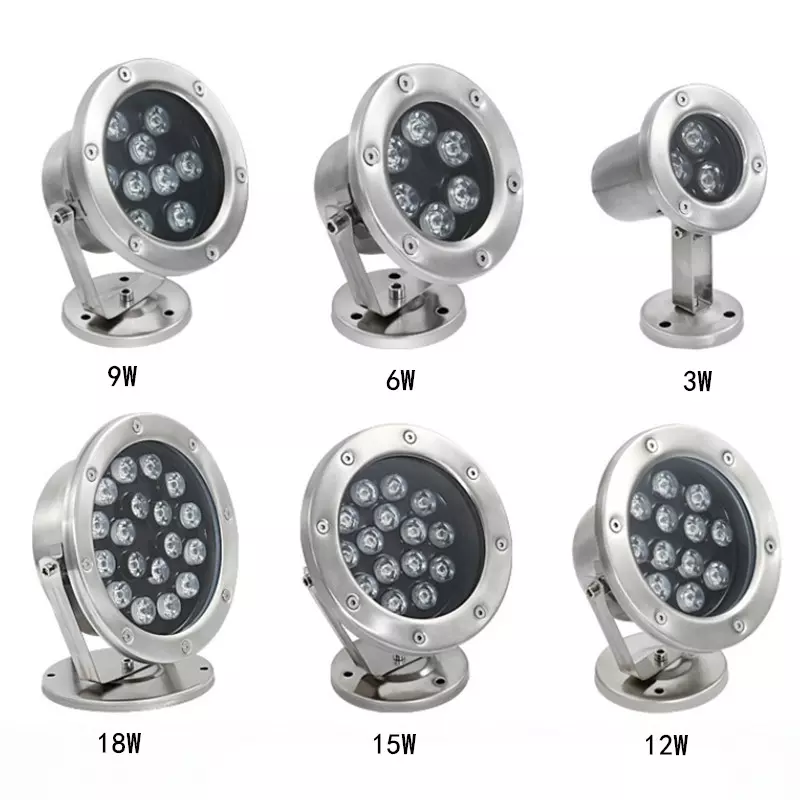

| Power | Input Voltage | Product Size | Beam Angle | G.W. | Protection Grade |
| 1W | DC12V / DC24V | ¢ 52x60MM | 30°/45°/ 60° | 0.25KGs | IP68 |
| 3W | DC12V / DC24V | ¢ 82x120MM | 30°/45°/ 60° | 0.37KGs | IP68 |
| 6W | DC12V / DC24V | ¢ 120x160MM | 30°/45°/ 60° | 0.62KGs | IP68 |
| 9W | DC12V / DC24V | ¢ 140x160MM | 30°/45°/ 60° | 0.90KGs | IP68 |
| 12W | DC24V | ¢ 160x180MM | 30°/45°/ 60° | 1.23KGs | IP68 |
| 15W | DC24V | ¢ 170x200MM | 30°/45°/ 60° | 1.50KGs | IP68 |
| 18W | DC24V | ¢ 190x250MM | 30°/45°/ 60° | 1.80KGs | IP68 |
| 24W | DC24V | ¢ 210x250MM | 30°/45°/ 60° | 2.25KGs | IP68 |
| 36W | DC24V | ¢ 230x300MM | 30°/45°/ 60° | 2.50KGs | IP68 |
Applications:

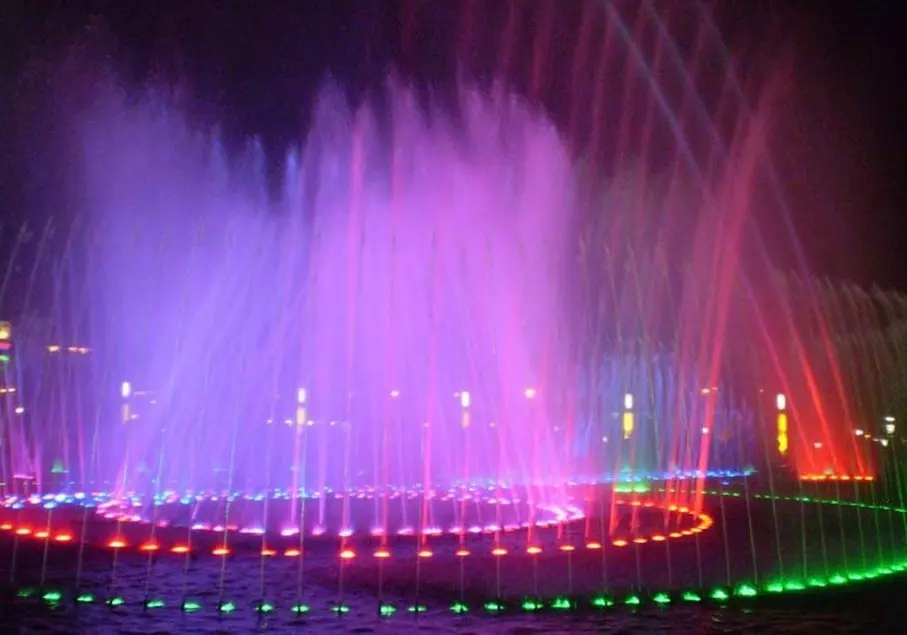

-Aquatic lights, pool lights, waterfall lights, spring lights and entertainment lights.
-Mall,Store,plaza,supermarket and pedestrian street lighting underwater led lights.
-Boat led lights,fountains,or any other underwater lighting application.
-Square, park, roadside, yard, lawn and garden lighting.
-Public park,Govement square,Plaza,street,etc.
-Garden, courtyard ,etc.
-School, hospital, mansion outline lighting.
-Swimming pool, fish pond, fountains, artificial rockwork.etc
