1. Housing: 304# stainless steel;
2. Cover:304# stainless steel;
3. Glass: Tempered Glass T=8mm
4. Lens:Optional lens, Efficiency ≥ 85%
5. Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
6. MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
7. Waterproof seal:glass and housing are silicone sealed
8. Operating temperature:-40~45 centigrade
* Unique optical design, no light pollution, glare-free, uniform light field, no strobe
* RGB and 2700K-7000K wide range color temperature optional
Over-Current Protection
Short-Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
| Product name |

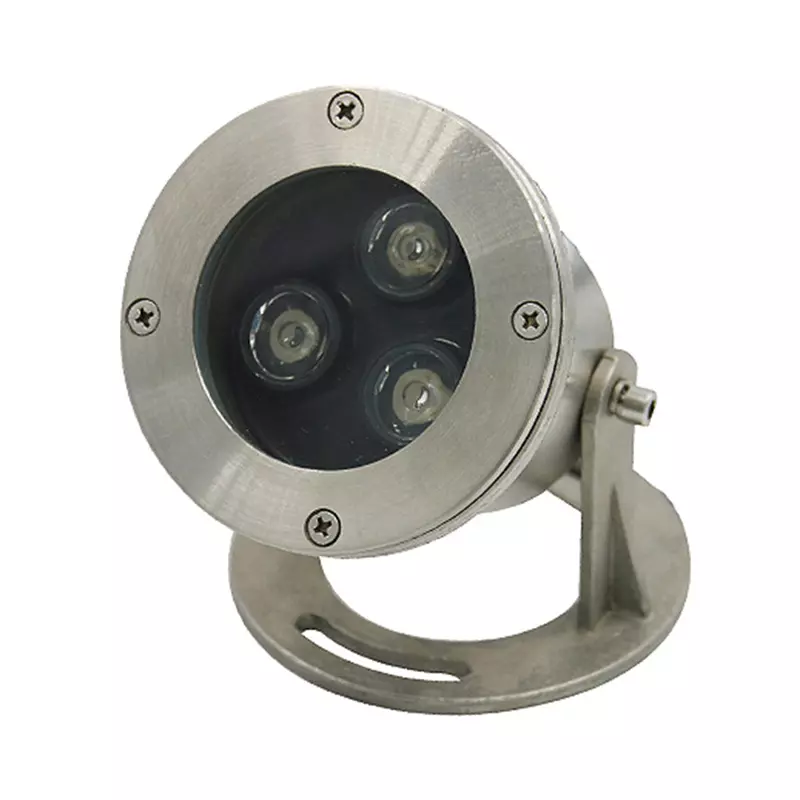

LED Pool Light |
| Model No. |
LSL-PL03003 |
| LED Chips Quantity |
3PCS |
| Power |
3W |
| Input Voltage |
DC12V / DC24V |
| Chips Brand |
Bridgelux/Epistar |
| Emitting Color |
White |
| LED Luminous Efficiency |
100LM/W |
| Lamp’s Luminous Efficiency |
>90LM/W |
| Beam Angle |
30°/45°/ 60° |
| CRI |
80Ra |
| Lifespan |
50,000hrs |
| Protection Rating |
IP68 |
| Operating Temperature |
-40°C~45°C |
| Material |
304 Stainless Steel |
| Product Size |
D90*H125MM |
DIRECT MANUFACTURER CAN PROVIDE YOU MORE COMPETITIVE ADVANTAGES
SMALL ORDER
NO MOQ
FAST DELIVERY
24*7 AFTER SALES SERVICES
YOU MAY LIKE



Applications:

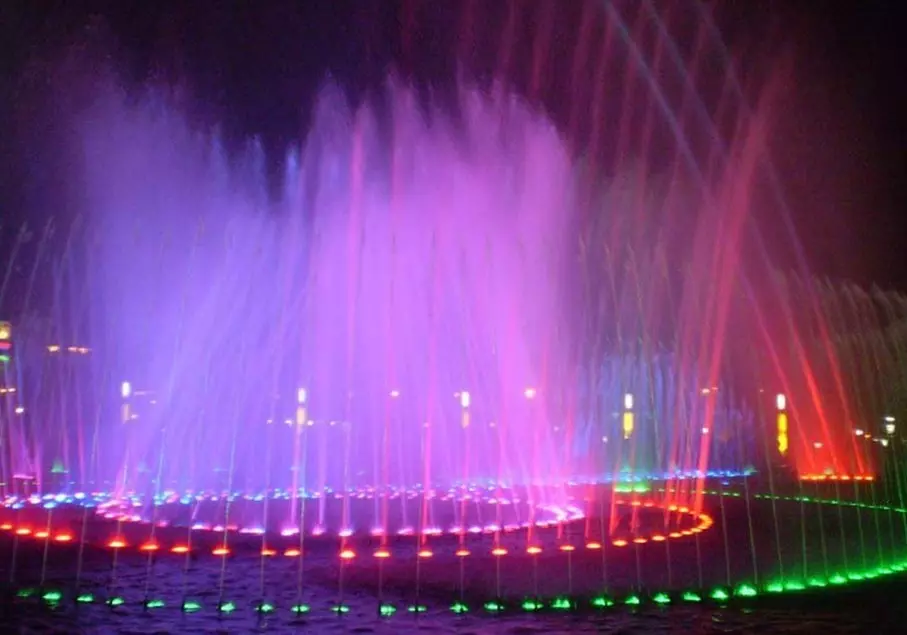

-Aquatic lights, pool lights, waterfall lights, spring lights and entertainment lights.
-Mall,Store,plaza,supermarket and pedestrian street lighting underwater led lights.
-Boat led lights,fountains,or any other underwater lighting application.
-Square, park, roadside, yard, lawn and garden lighting.
-Public park,Govement square,Plaza,street,etc.
-Garden, courtyard ,etc.
-School, hospital, mansion outline lighting.
-Swimming pool, fish pond, fountains, artificial rockwork.etc
