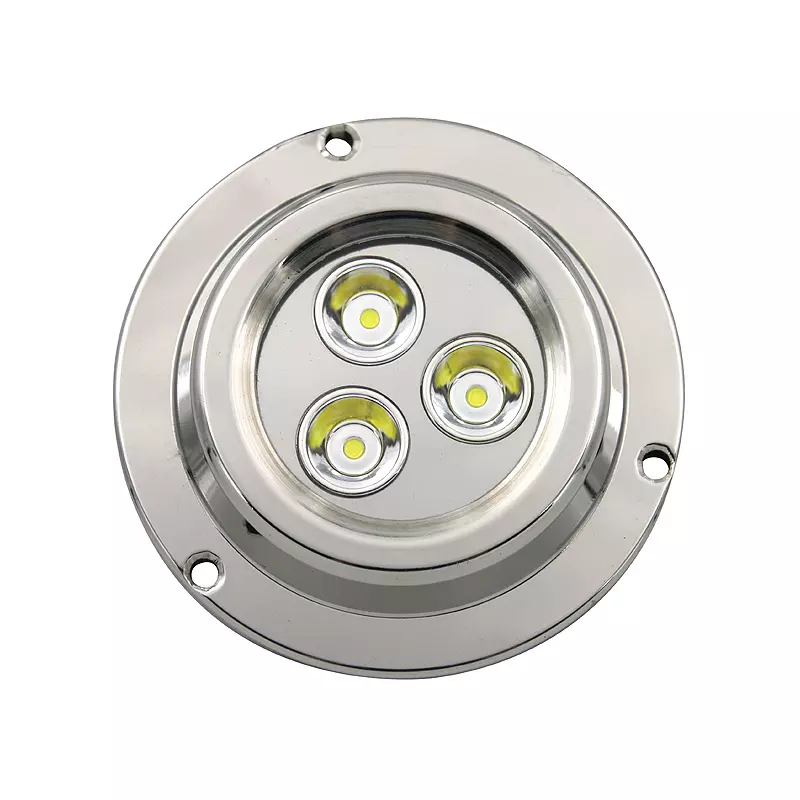

9W Underwater Led Boat Light
Product Details
| ■Main Features: | |||||||
| 1. Made of 316L stainless Steel has excellent corrosion-proof 2. Waterproof: IP68 3. Low power consumption, high efficiency 4. CE and RoHS approved 5. Every light comes with 2M cable, 3 M4 screws and 1 fast fuse 6. Built-in driver 7. Easy to Install |
|||||||
| Power (W) |
Emitting color | Chips Brand | Working Current | Input voltage | Wavelength (nm) |
Total Lumens (LM） |
Beam Angle |
| 3x3 | White | CREE | 12VDC @ 500-600mA |
12/24/10-30VDC | 3000-6000K | 550-600 | 30° |
| Red | 630 | 200-250 | |||||
| Green | 520 | 450-500 | |||||
| Blue | 460 | 120-150 | |||||
| White+Blue | 70-300 | ||||||
| RGB | Epistar | -- | 50-300 | ||||
| 3x4 | RGBW | -- | 40-350 | ||||
1,Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.
2,First-class 316L stainless steel shell has excellent corrosion-proof, makes the lights to use in sea water freely
3,High luminous efficiency, life-span more than 50000 hours
4, Wide working current range. Lower electric consumption
5,Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.
6,Power: 3x3W
7, Waterproof: IP68
8,Supply Voltage : DC10-30V
9, LED chips : CREE
10, Emitting angle of peak : 30°
11, Color : White (other single colors are available)
Over-Current Protection
Short-Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
*built-in constant current driver inside the housing
*Widely working current range, Lower electric consumption.
*Every light comes with 2 Meters cable
*Easy to installation.
*OEM service to print your own logo for free
| Model Number | LSL-UD90-9W |
| Total Power | 9W |
| Total Luminous Flux | 800LM |
| Emitting Color | White |
| Input Voltage | DC12V |
| Beam Angle | 30° |
| Power Efficiency | >86% |
| Color Rendering Index(CRI) | Ra>80 |
| Frequency Range | 47-63Hz |
| Power Factor(PF) | ≥0.95 |
| Total Harmonic Distortion(THD) | <15% |
| Working Lifetime | >50,000Hrs |
| IP Rating | IP68 |
| Body Material | 316L Stainlesss Steel |
| Product Size | D90 x H17.5MM (3.54"x0.7") |
| Net Weight | 0.4KGS (0.88lbs) |
| Gross Weight | 0.5KGS (1.1lbs) |
| Inner Box Size | 13x11.5x7.5CM (5.12"X4.53"X3") |
| Carton Packing Size | 60x26x17CM (23.62"x10.25"x6.7") 20PCS/CTN |

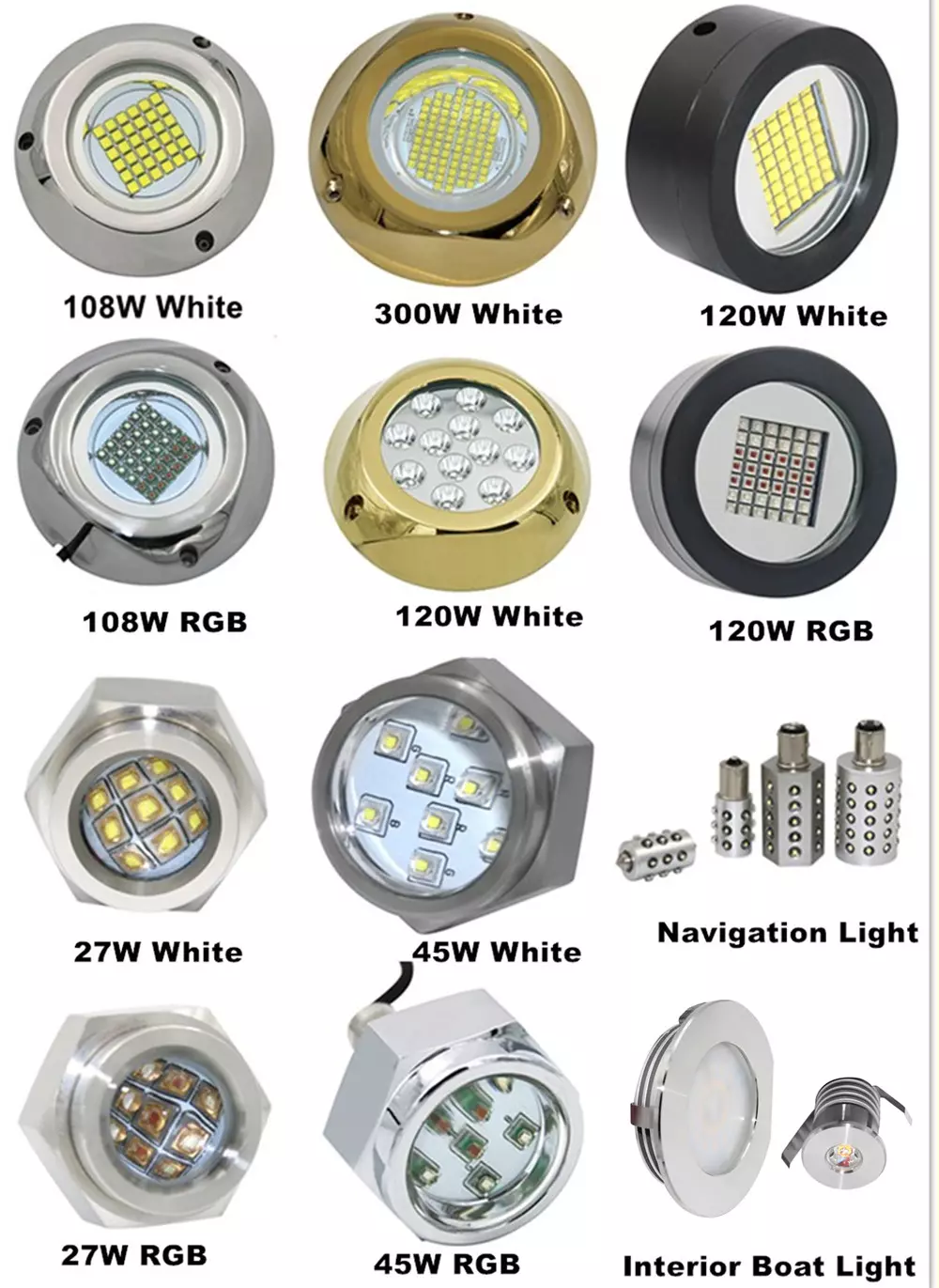

YOU MAY LIKE

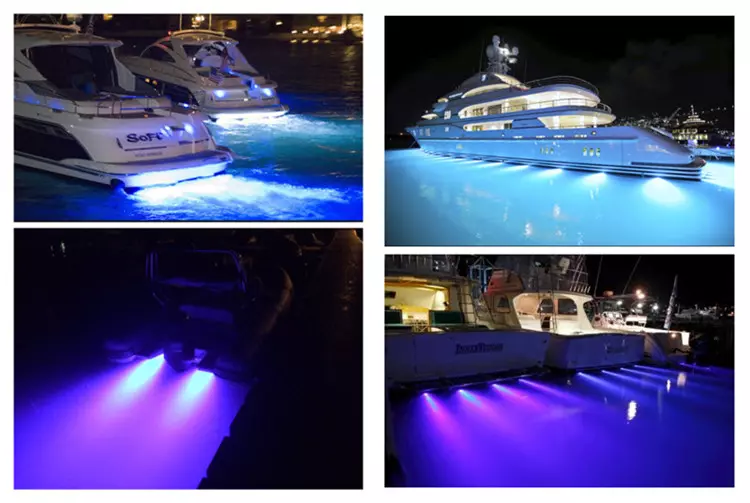

Application:
1. These underwater led marine lights are designed to mounted to your boats.
Use high power LED on marine to show sea creatures at night, floodlight to
show off the outline of the boat,the illuminative light as new fashion illumination.
Light up the water behind your boat with these super bright high quality underwater
led lights. Amazing looks, Attract marine life, wakeboard on illuminated water.
2.These lights also good for docks, ponds, swimming pools, fountains or any other
underwater lighting application.
