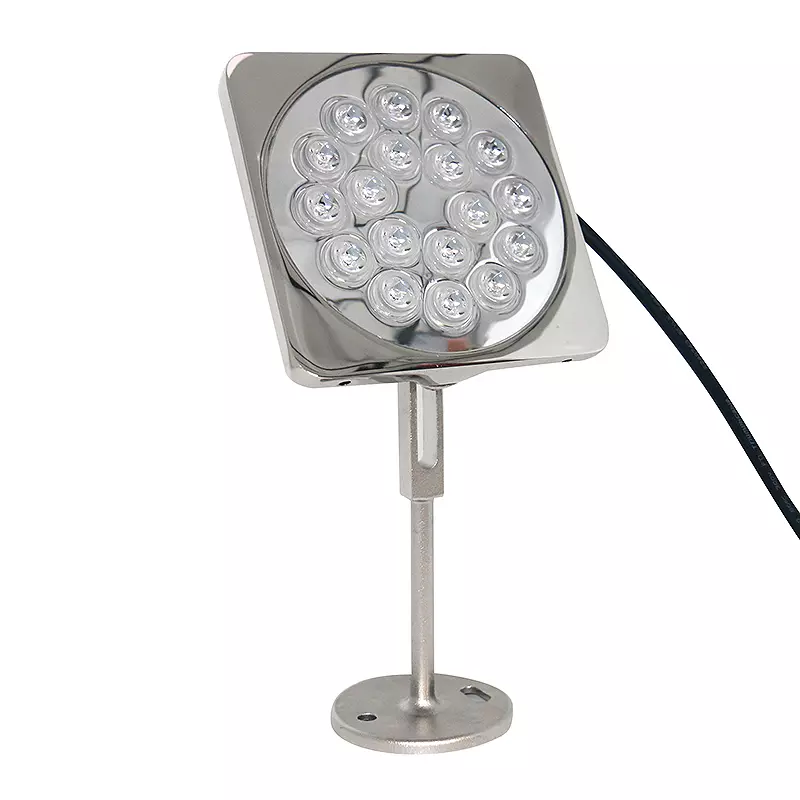

Fountain Pond Underwater Flood LED Swimming Pool Light
Product Details
1.Housing: 316# stainless steel
2.Cover: PC
3.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
4.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
5.waterproof seal:glass and housing are silicone sealed
6.Operating temperature:-40~45 centigrade
* Unique optical design, no light pollution, glare-free, uniform light field, no strobe
* RGBW, RGB and 2700K-7000K wide range color temperature optional4
* 10-30VDC(Single Color); 10VDC / 24VDC for optional( RGB and RGBW Color）
Over-Current Protection
Short-Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
| Product name | LED Pool Light |
| Model No. | PL110-18W |
| LED Chips Quantity | 18PCS |
| Avaible Power | 18W 54W |
| Input Voltage | DC10-30V |
| Chips Brand | Bridgelux/Epistar |
| Emitting Color | RGBW |
| LED Luminous Efficiency | 100LM/W |
| Lamp’s Luminous Efficiency | >60LM/W |
| Beam Angle | 30°/45°/ 60° |
| CRI | 80Ra |
| Lifespan | 50,000hrs |
| Protection Rating | IP68 |
| Operating Temperature | -40°C~45°C |
| Material | 316 Stainless Steel |
| Product Size | 110x213x58MM |
DIRECT MANUFACTURER
NO MOQ
FAST DELIVERY
GOOD QUALITY
COMPETITIVE PRICE
OFFER OEM and ODM

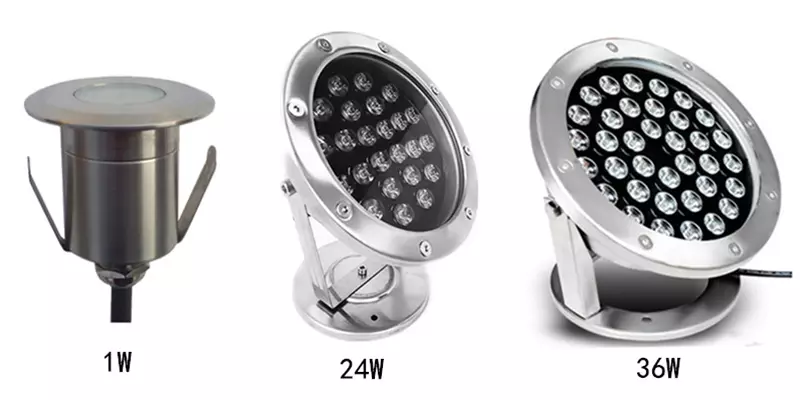

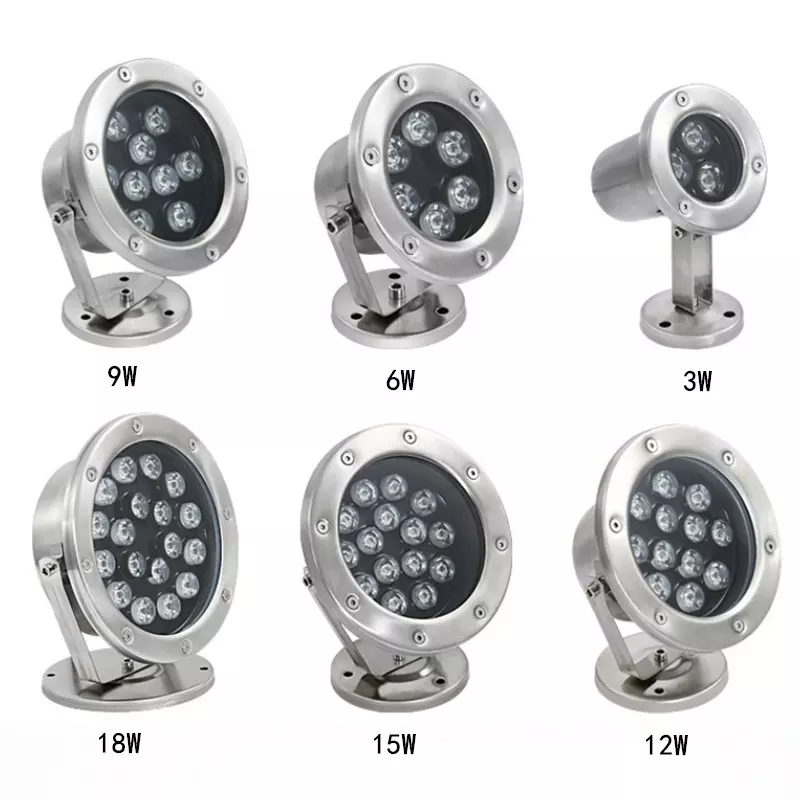

| Power | Input Voltage | Product Size | Beam Angle | G.W. | Protection Grade |
| 1W | DC12V / DC24V | ¢ 52x60MM | 30°/45°/ 60° | 0.25KGs | IP68 |
| 3W | DC12V / DC24V | ¢ 82x120MM | 30°/45°/ 60° | 0.37KGs | IP68 |
| 6W | DC12V / DC24V | ¢ 120x160MM | 30°/45°/ 60° | 0.62KGs | IP68 |
| 9W | DC12V / DC24V | ¢ 140x160MM | 30°/45°/ 60° | 0.90KGs | IP68 |
| 12W | DC24V | ¢ 160x180MM | 30°/45°/ 60° | 1.23KGs | IP68 |
| 15W | DC24V | ¢ 170x200MM | 30°/45°/ 60° | 1.50KGs | IP68 |
| 18W | DC24V | ¢ 190x250MM | 30°/45°/ 60° | 1.80KGs | IP68 |
| 24W | DC24V | ¢ 210x250MM | 30°/45°/ 60° | 2.25KGs | IP68 |
| 36W | DC24V | ¢ 230x300MM | 30°/45°/ 60° | 2.50KGs | IP68 |

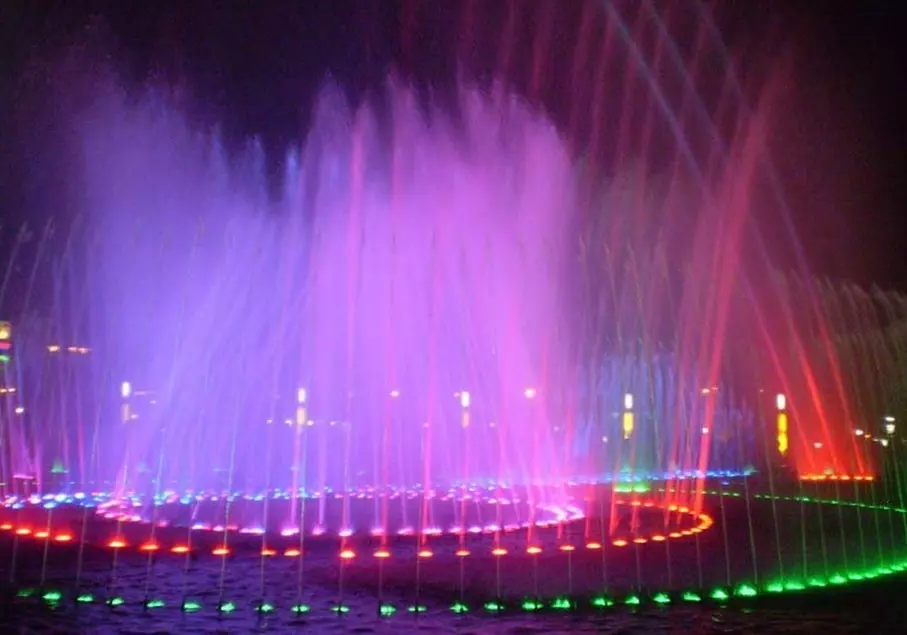

Applications:
1. School, Universities, Hospital
2. Commercial establishments
3. Super market
4. Residential, Institution buildings
5. Government lighting engineering, airport, subway, elevated overpass
6.Bilding external walls landmarks, the landscape lighting
